Basic Device Access & Management

April 17, 2026

I decided to sit down and study for the CCNA once again. I found the best way for me to retain information is by writing it down, and by teaching it to someone. I feel a blog checks both boxes.

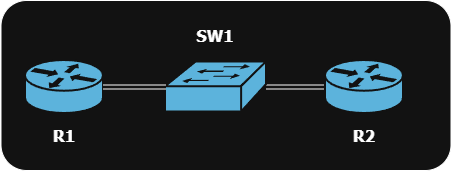

Topology

topology

IP Addresses

Device	Interface	IP Address	Purpose
R1	GigabitEthernet0/1	10.0.1.1/24	Link to SW1
SW1	VLAN 1 (SVI)	10.0.1.2/24	Management SVI
SW1	Default Gateway	10.0.1.1	Points to R1
R2	GigabitEthernet2	10.0.1.3/24	Link to SW1

Containerlab YAML File

YAML

---
name: module01-device-access

topology:
  nodes:
    r1:
      kind: cisco_iosv
      image: vrnetlab/cisco_iosv:high_iron_20200929
      startup-config: ""

    sw1:
      kind: cisco_cat9kv
      image: vrnetlab/cisco_cat9kv:17.15.01
      startup-config: ""

    r2:
      kind: cisco_csr1000v
      image: vrnetlab/cisco_csr1000v:17.03.08a
      startup-config: ""

  links:
    # R1 Gi0/1 <-> SW1 Gi1/0/1
    - endpoints:
        - "r1:eth1"
        - "sw1:eth1"

    # SW1 Gi1/0/2 <-> R2 Gi2
    - endpoints:
        - "sw1:eth2"
        - "r2:eth1"

Hostnames & Domain Name

First thing to do is set the hostnames, so it’ll make it easier to know which console you’re logged into. Having a domain name is required for SSH key generation.

Router# configure terminal
Router(config)# hostname R1
R1(config)# ip domain-name ccna.lab
R1(config)# no ip domain-lookup
R1(config)# end

SW1

Switch# configure terminal
Switch(config)# hostname SW1
SW1(config)# ip domain-name ccna.lab
SW1(config)# no ip domain-lookup
SW1(config)# end

Router# configure terminal
Router(config)# hostname R2
R2(config)# ip domain-name ccna.lab
R2(config)# no ip domain-lookup
R2(config)# end

Passwords & Line Security

Next, I set the enable secret, console password, and VTY line passwords.

R1, SW1, R2

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
(config)# enable secret ccna2026!

(config)# service password-encryption

(config)# line console 0
(config-line)# password console123
(config-line)# login
(config-line)# logging synchronous
(config-line)# exec-timeout 15 0
(config-line)# exit

(config)# line vty 0 4
(config-line)# password vty123
(config-line)# login
(config-line)# logging synchronous
(config-line)# exec-timeout 15 0
(config-line)# exit

Line 1:: Enables secret password
Line 3:: Encrypts all plaintext passwords in the config
Line 6:: Sets password to access console
Line 8:: Prevents syslog messages from interrupting my typing.
Line 9:: Sets a 15 minute idle timeout.

Login Banners

Then I configured MOTD and login banners.

R1, SW1, R2

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
(config)# banner motd #
*********************************************
*  AUTHORIZED ACCESS ONLY                   *
*  All activity is monitored and logged.     *
*  Unauthorized access will be prosecuted.   *
*********************************************
#

(config)# banner login #
== CCNA Lab Device ==
#

Line 1:: Message of the Day banner which is shown to all connections
Line 9:: Login banner which is shown after MOTD, but before the password prompt.

Management IP Addresses

Next I assigned IPs to the interfaces connecting the devices through SW1. This gives me the L3 reachability needed for SSH.

R1# configure terminal

R1(config)# interface GigabitEthernet0/1
R1(config-if)# ip address 10.0.1.1 255.255.255.0
R1(config-if)# description Link to SW1 Gi1/0/1
R1(config-if)# no shutdown
R1(config-if)# exit

R1(config)# end

SW1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
SW1# configure terminal

SW1(config)# interface GigabitEthernet1/0/1
SW1(config-if)# description Link to R1 Gi0/1
SW1(config-if)# no shutdown
SW1(config-if)# exit

SW1(config)# interface GigabitEthernet1/0/2
SW1(config-if)# description Link to R2 Gi2
SW1(config-if)# no shutdown
SW1(config-if)# exit

SW1(config)# interface Vlan1
SW1(config-if)# ip address 10.0.1.2 255.255.255.0
SW1(config-if)# description Management SVI
SW1(config-if)# no shutdown
SW1(config-if)# exit

SW1(config)# ip default-gateway 10.0.1.1

SW1(config)# end

Lines 3-5:: Ensures the interfaces connecting to R1 and R2 are up
Lines 13-16:: Management SVI on VLAN 1
Line 19:: Default gateway so SW1 can reach the other subnets

ip default-gateway only works when ip routing is disabled.

R2# configure terminal

R2(config)# interface GigabitEthernet2
R2(config-if)# ip address 10.0.1.3 255.255.255.0
R2(config-if)# description Link to SW1 Gi1/0/2
R2(config-if)# no shutdown
R2(config-if)# exit

R2(config)# end

Verify L3 Connectivity

From R1 I ping SW1 and R2

R1# ping 10.0.1.2
R1# ping 10.0.1.3

Fromt SW1 I ping R1 and R2

SW1# ping 10.0.1.1
SW1# ping 10.0.1.3

From R2 I ping R1 and SW1

R2# ping 10.0.1.1
R2# ping 10.0.1.2

Then verified interface status on all devices:

R1# show ip interface brief
SW1# show ip interface brief
R2# show ip interface brief

SSH v2 Configuration

The 4 prerequisites for SSH:

A hostname other than the default
An IP domain-name
RSA keys generated
VTY lines configured for login local with transport input ssh

R1, SW1, R2

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
#configure terminal

(config)# username admin privilege 15 secret admin2026!

(config)# crypto key generate rsa modulus 2048

(config)# ip ssh version 2

(config)# ip ssh time-out 60
(config)# ip ssh authentication-retries 3

(config)# line vty 0 4
(config-line)# transport input ssh
(config-line)# login local
(config-line)# exit

(config)# line vty 5 15
(config-line)# transport input ssh
(config-line)# login local
(config-line)# exit

(config)# end

Line 3:: Creates a local user account
Line 5:: Generates RSA keys
Line 7:: Set SSH version 2
Lines 9-10:: Optional - Set SSH timeout and max retries
Lines 12-14:: Configures VTY lines for SSH with local auth
Lines 17-19:: Optional - Secures VTY 5-15 if available
privilege 15:: Gives the user immediate access to privileged EXEC mode without needing to type enable.

login - uses the line password (set with password)
login local - uses the local username database (set with username)

SSH requires login local.

Verify SSH Access

I then tested SSH between devices to make sure everything works.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R1# ssh -l admin 10.0.1.2
Password: admin2026!
SW1#

SW1# show ip interface brief
SW1# exit
[Connection to 10.0.1.2 closed]

R1# ssh -l admin 10.0.1.3
Password: admin2026!
R2#
R2# exit

Line 1:: SSH from R1 into SW1
Lines 5-7:: Confirm I’m on SW1, then exit back to R1
Line 9:: SSH from R1 into R2

Then verified with show commands.

R1, SW1, R2

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R1# show ip ssh
SSH Enabled - version 2.0
Authentication timeout: 60 secs; Authentication retries: 3

R1# show ssh

R1# show users

R1# show running-config | section line vty

R1# telnet 10.0.1.2
% Connection refused by remote host

Line 1:: Verify SSH status
Line 5:: See active SSH sessions
Line 7:: See who’s connected
Line 9:: Verify VTY line config
Line 11:: Verify Telnet is blocked

Telnet should not work since I setup tansport input ssh.

Configuration Management

1
2
3
4
5
6
7
R1# show running-config

R1# show startup-config

R1# copy running-config startup-config
Destination filename [startup-config]?  ← press Enter
[OK]

Line 1:: View the running config (what’s active in RAM)
Line 3:: View the startup config (what’s saved in NVRAM)
Line 5:: Save running-config to startup-config

copy running-config startup-config saves my work.
copy startup-config running-config merges saved config into the running config, it does not replace it.

SW1, R2

SW1# copy running-config startup-config
R2# copy running-config startup-config

SW1# show version
R2# show version

Show Commands

A list of commands to find device information.

show version

show inventory

show processes cpu sorted
show memory statistics

show file systems
dir

showing running-config | section line
